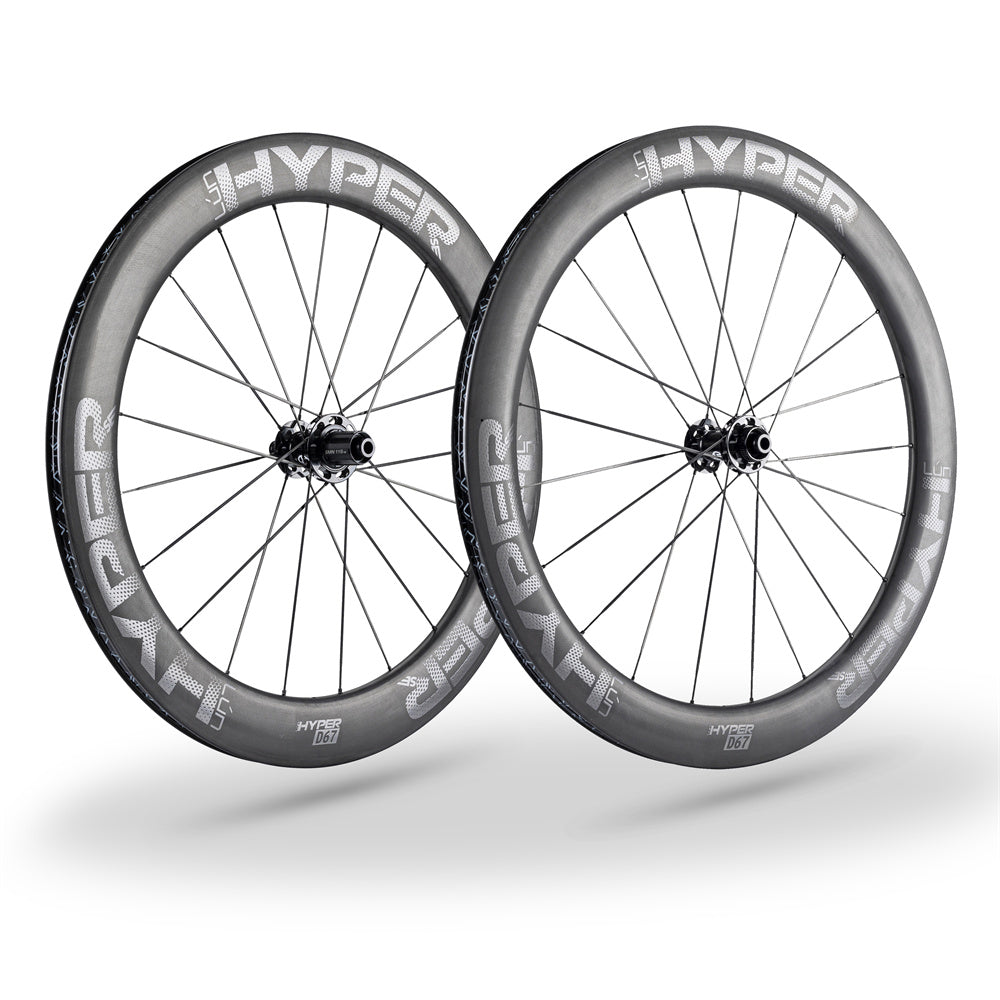

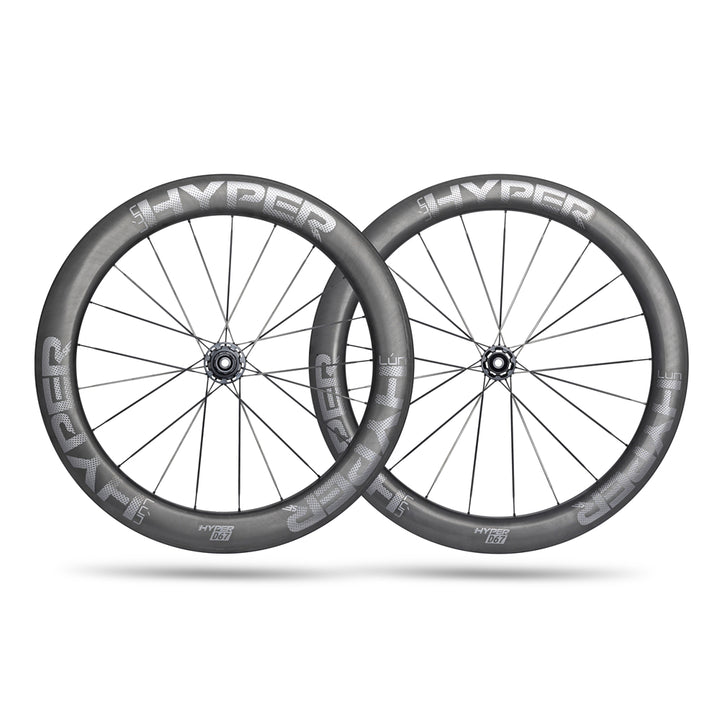

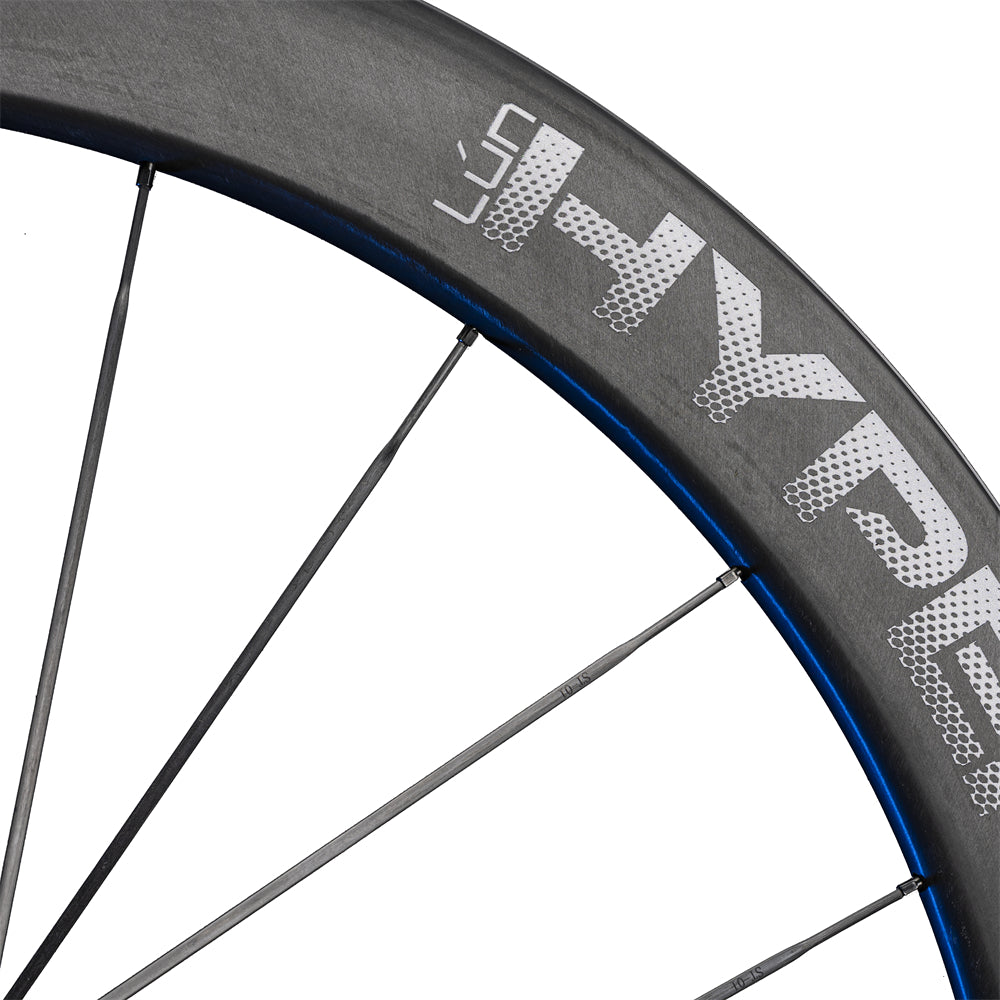

Lún HYPER 23 SE D67 Disc Brake Wheelset
HYPER 23 SE Unique Features:
(Compared to HYPER 23 Classic Version)
-
HYPER 23 Performance, SPECIAL Price
Based on our hugely successful, critically acclaimed, race-winning HYPER 23 wheels, the HYPER 23 SE range offers our biggest value for money ever. We’re able to use economies of scale and a few tweaks to the components to reduce costs and allow us to offer this amazing performance wheelset for just $1200.
-
Steel bearings
Steel bearings are known for their excellent strength and durability. They can withstand heavy loads, impacts, and high-speed rotations without deforming or wearing out quickly.
-

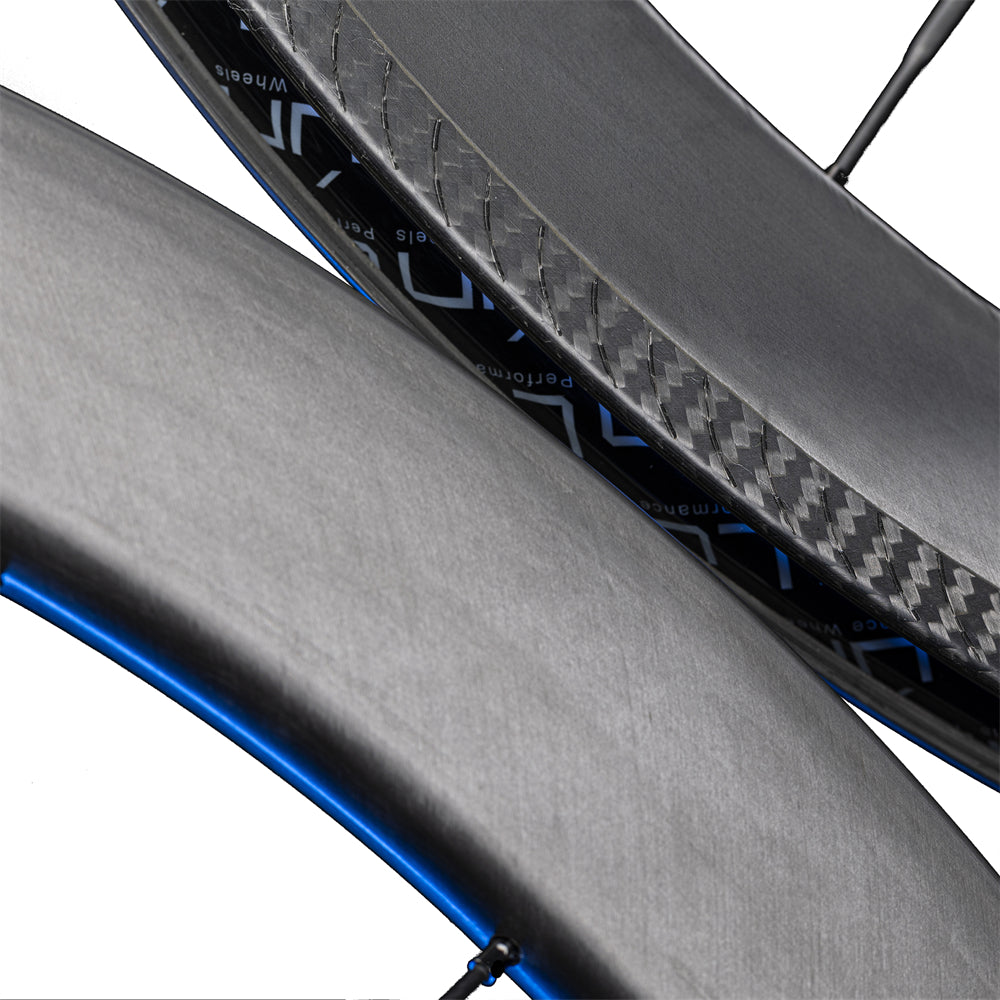

UD Finish
All 6 models feature UD carbon, no butterfly weave. Again, we like the butterfly weave, but we get that it’s not to everyone’s taste.
-

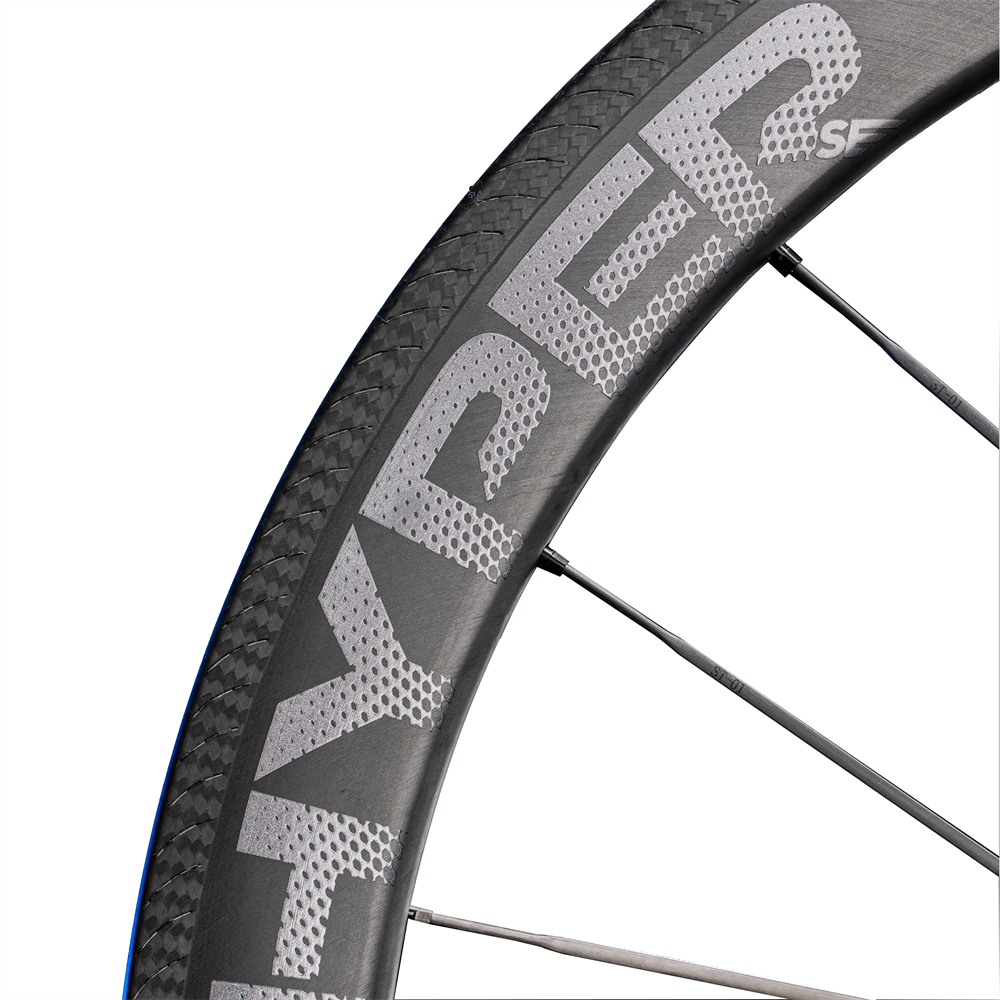

Texture Braking Surface
The rim brake models feature a 3K textured braking surface for longevity and superior braking performance in the rain.
What’s New?
（Compared to Hyper 20）
21mm Internal Rim Width
The optimum rim width for different yaw angles and riding speeds can be debated. However, one thing that was overwhelming clear was that you guys wanted a wider internal rim width for riding with wider tires. The wider 21mm internal width rim gives better aerodynamic performance with a 25mm wide tire compared to our previous model HYPER due to the better transition from tire to rim. 21mm internal rim width is perfect for either 25mm or 28mm tires but can take tires all the way up to 47mm.
Stability Meets Speed
F-RAPID Design
The R33 and D33 wheels are designed for all-out climbing performance. However, our 45 and 67 series wheels put aerodynamic efficiency first. They’re the first wheels to feature our F-RAPID Design. The Front and Rear Aero Profiles are Individually Designed to meet their unique demands. The front wheel is optimized for its leading edge performance giving speed and stability in a variety of conditions with a more rounded rim profile. The rear wheel profile is taller and is optimized for lower yaw angles with an emphasis on trailing edge performance.
Every Gram Counts
While most the improvements for Lún HYPER 23 SE are incremental, they add up to measurable gains. In a sport where sprints are won or lost by fractions of an inch, every gram, every millimeter, every small detail makes a difference. It took us countless carbon layup iterations to hit our weight and strength targets but the results were worth it. On average we shaved over 50g from each wheelset compared to the wheelset it replaces.
| Lún HYPER 38mm Rim Brake | 》 | Lún HYPER 23 SE R33 |
|---|---|---|
| 1267g | 1256g | |
| 11 grams lighter | ||
| Lún HYPER 50mm Disc Brake | 》 | Lún HYPER 23 SE D45 |
| 1455g | 1428g | |
| 27 grams lighter | ||
| Lún HYPER 65mm Disc Brake | 》 | Lún HYPER 23 SE D67 |
| 1608g | 1518g | |
| 90 grams lighter | ||
Wider Range
In reviews and comments alike, the same few comments kept coming up. “I wish there was an even shallower option.” said the climbers. “I wish there was a deeper option.” bemoaned the speed lovers. We listened. The shallowest wheel is now shallower than ever (35mm), and the deepest is deeper than ever (68mm!)
28% Increase in Drive Spoke Angle
Spoke angle has a huge impact on the performance of a wheelset. While there’s no “perfect” angle, after feedback from our professional athletes and weekend warriors alike we increased the drive-spoke angle by 28% leading to greater torsional stiffness and more direct power transfer. This led to a 15.7% increase in torsional stiffness.
Rim or Disc:
The choice is yours
Specifications
| Lún HYPER 23 SE R33 | Lún HYPER 23 SE D33 | |
|---|---|---|
| Brake Type: | Rim Brake | Disc Brake |
| Wheelset Weight: | 1256g | 1348g |
| Internal Rim Width: | 21mm | 21mm |
| Front Rim Depth: | 35mm | 35mm |
| Rear Rim Depth: | 35mm | 35mm |
| Front External Width: | 27.6mm | 27.6mm |
| Rear External Width: | 27.6mm | 27.6mm |
| Front Wheel Spokes: | 16 | 21 |
| Rear Wheel Spokes: | 21 | 21 |
| Minimum Tire Size: | 25mm | 25mm |
| Maximum Tire Size: | 47mm | 47mm |
| Max. Tire Pressure: | 120psi | 120psi |
| Lún HYPER 23 SE R45 | Lún HYPER 23 SE D45 | |
|---|---|---|
| Brake Type: | Rim Brake | Disc Brake |
| Wheelset Weight: | 1336g | 1428g |
| Internal Rim Width: | 21mm | 21mm |
| Front Rim Depth: | 46mm | 46mm |
| Rear Rim Depth: | 54mm | 54mm |
| Front External Width: | 27.6mm | 27.6mm |
| Rear External Width: | 27.8mm | 27.8mm |
| Front Wheel Spokes: | 16 | 21 |
| Rear Wheel Spokes: | 21 | 21 |
| Minimum Tire Size: | 25mm | 25mm |
| Maximum Tire Size: | 47mm | 47mm |
| Max. Tire Pressure: | 120psi | 120psi |
| Lún HYPER 23 SE R67 | Lún HYPER 23 SE D67 | |
|---|---|---|
| Brake Type: | Rim Brake | Disc Brake |
| Wheelset Weight: | 1441g | 1518g |
| Internal Rim Width: | 21mm | 21mm |
| Front Rim Depth: | 60mm | 60mm |
| Rear Rim Depth: | 68mm | 68mm |
| Front External Width: | 28mm | 28mm |
| Rear External Width: | 28.5mm | 28.5mm |
| Front Wheel Spokes: | 16 | 21 |
| Rear Wheel Spokes: | 21 | 21 |
| Minimum Tire Size: | 25mm | 25mm |
| Maximum Tire Size: | 47mm | 47mm |
| Max. Tire Pressure: | 120psi | 120psi |
* Each wheel’s weight is subject to ±25g of tolerance
** Never exceed the maximum air pressure printed on the tire
What’s unchanged?
Race-day Performance Every Day
When updating the Lún HYPER wheels to 2023 spec it was important to retain the essence of what made the Lún HYPERs hyper. The Lún HYPERs are known for bringing huge performance to an affordable price point, and that didn’t change.

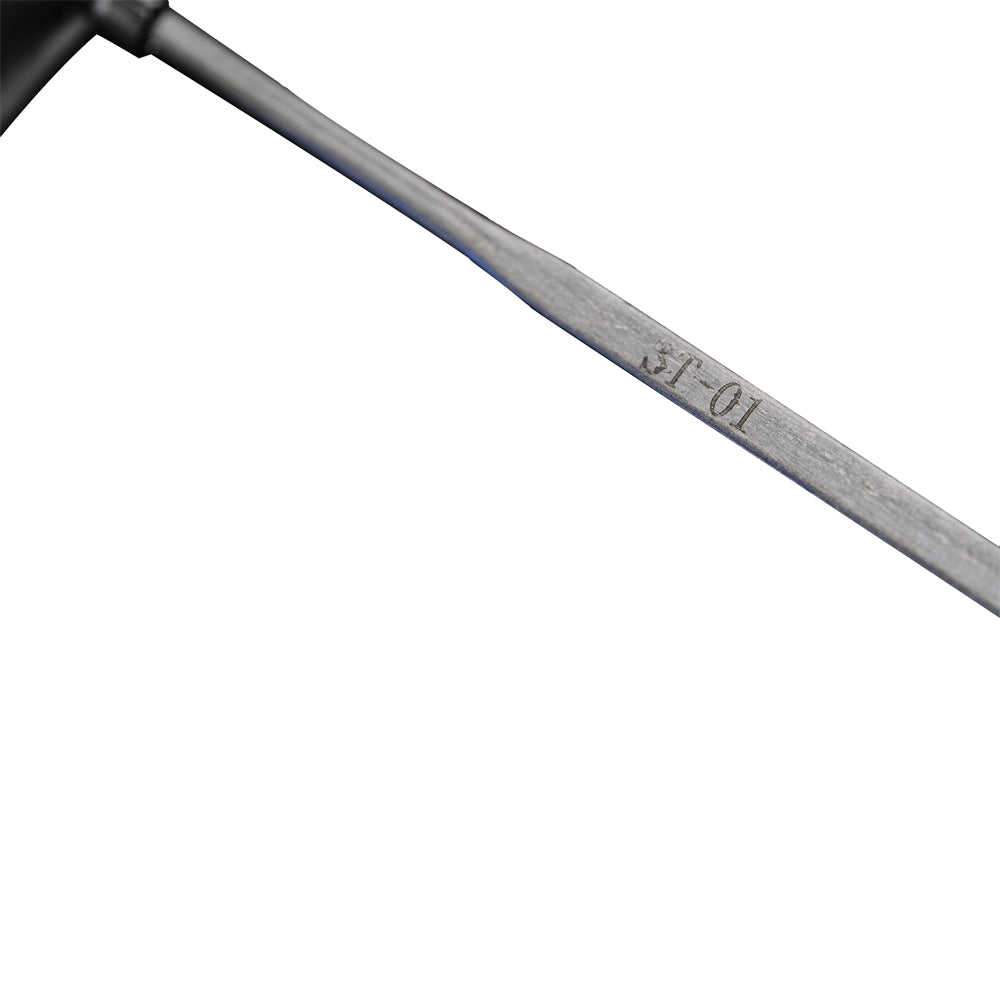

Carbon Spokes
The carbon spokes remain as an essential part of the formula. Carbon spokes are lighter and stronger than their traditional steel counter-parts and offer great ride characteristics of snappy acceleration and greater wheel stiffness during sprints.
We’re Hooked on Tubeless
We think tubeless is great, but if you’re not convinced we still support regular clincher tires and tubes. For those running tubeless we made small tweaks to the rim which should make tubeless setup just that little bit easier.
Robust Hub
The hub is the heart of any wheelset. It can make or break the best of designs. The Lún HYPER 2023 hub’s internals remain mostly unchanged: A strong over-sized 17mm axle is able to cope with the forces of any sprint effort. Large 6903 and 6803 bearings placed in reinforced bearing seats help improve bearing life and lower rolling resistance.
Tested by Pros, Approved by the UCI
Pro cyclists are the ultimate test for bike equipment. They only want the best performance, and they demand reliability. All our new products are tested extensively in both lab conditions and out in the real world.
